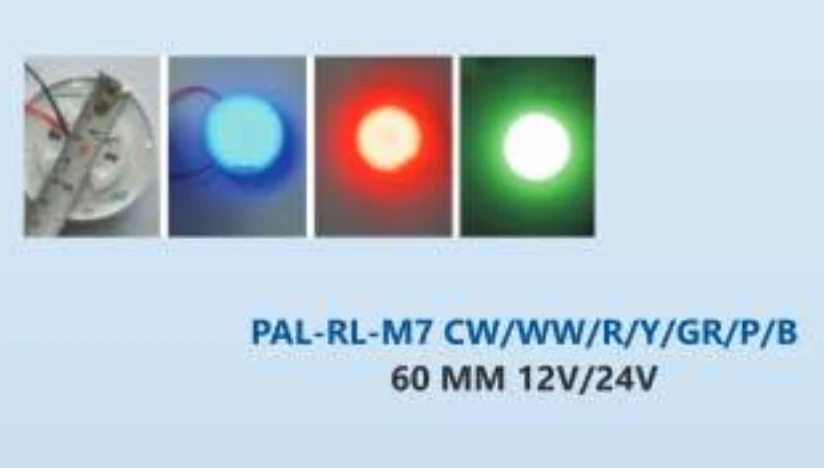

PAL-RL-M7 CW/WW/R/Y/GR/P/8 60 MM 12V/24V

The PAL-RL-M7 is a compact 60 mm LED marker and signal lamp designed for use in tractors, trucks, trailers, LCVs, buses, and construction equipment. Available in multiple color options – Cool White (CW), Warm White (WW), Red (R), Yellow (Y), Green (GR), Pink (P), and 8-function multi-color (8) – this lamp provides versatile signaling and illumination for various applications.

Its multi-voltage compatibility (12V/24V) ensures seamless use across different vehicle electrical systems. Built with a robust polycarbonate lens and durable housing, the PAL-RL-M7 is dustproof, waterproof, and vibration-resistant, making it highly reliable for demanding on-road and off-road environments.

Technical Specifications

1. Model: PAL-RL-M7
2. Light Diameter: 60 mm
3. Operating Voltage: 12V / 24V DC
4. Light Colors Available:
5. CW – Cool White
6. WW – Warm White
7. R – Red
8. Y – Yellow
9. GR – Green
10. P – Pink
11. 8 – Multi-Color (8 functions)
12. Lens: High-strength polycarbonate
13. Housing: Rugged, weather-resistant body
14. Ingress Protection: IP67 – waterproof & dustproof
15. Mounting: Surface / panel mount with secure fixing options
16. Applications: Marker lamp, position lamp, signal lamp, decorative light for commercial and agricultural vehicles
